Category Wind Sensors : 24 products

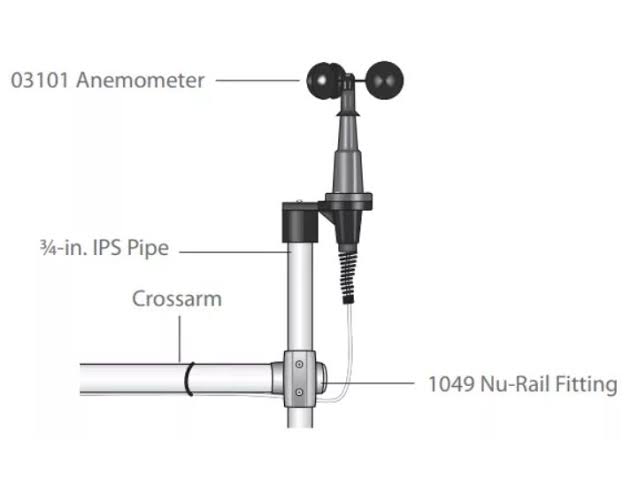

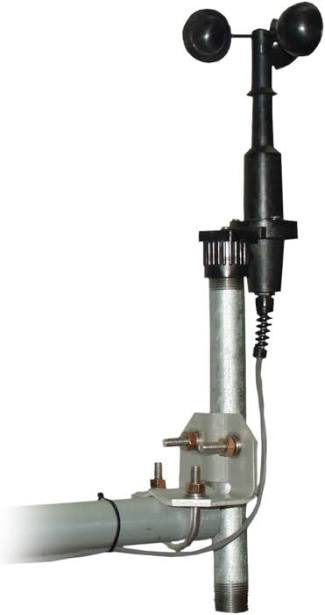

Model 03101 Wind Sentry Anemometer

The Model 03001 Wind Sentry Anemometer is a Professional quality sensor. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]   Wind speed : 0 - 50 m/s (180 kph)
[Accuracy]   Wind speed : +-0.5 m/s
[Threshold]   Cup anemometer : 1.1m/s
[Dynamic Response]   Cup wheel distance constant 2.3m
[Signal Output]   Wind peed- AC sine wave,  pulse per rev. 1800 rpm (30 Hz) = 22.8 m/s (51.0 mph)
[Power requirement]   Potentiometer excitation-15 VDC maximum.

Manufacturer R.M.Young

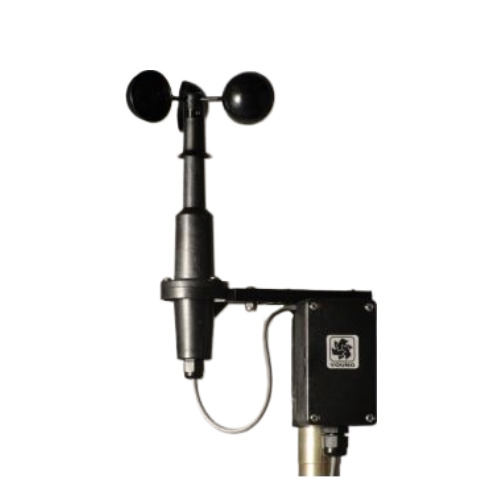

Model 03102LM Wind Sentry Anemometer

The Model 03001 Wind Sentry Anemometer is a Professional quality sensor. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]   Wind speed : 0 - 50 m/s (180 kph)
[Accuracy]   Wind speed : +-0.5 m/s
[Threshold]   Cup anemometer : 1.1m/s
[Dynamic Response]   Cup wheel distance constant 2.3m
[Signal Output]   4-20mA Output.
[Power requirement]   8-30 VDC (40 mA max.)

Manufacturer R.M.Young

Model 03102VM Wind Sentry Anemometer

The Model 03001 Wind Sentry Anemometer is a Professional quality sensor. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]

Wind speed : 0 - 50 m/s (180 kph)
[Accuracy]   Wind speed : +-0.5 m/s
[Threshold]   Cup anemometer : 1.1m/s
[Dynamic Response]   Cup wheel distance constant 2.3m
[Signal Output]

0-1V Output.
[Power requirement]   8-24 VDC (5 mA @ 12 VDC)

Manufacturer R.M.Young

Model 03001 Wind Sentry Wind Set.

The Model 03001 Wind Sentry Anemometer and Vane are Professional quality sensors. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]

Wind speed : 0 - 50 m/s (180 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)

[Accuracy]   Wind speed : +-0.5 m/s    -    Wind direction : +- 5  deg
[Threshold   Cup anemometer : 1.1m/s   -   Vane 1.3 m/s
[Dynamic Response]

Cup wheel distance constant 2.3m

Vane delay distance 0.5m

Damping ratio : 0.2

[Signal Output]

Wind peed- AC sine wave,  pulse per rev. 1800 rpm (30 Hz) = 22.8 m/s (51.0 mph)

Wind direction- Analog DC voltage from 10KW  conductive plastic potentiometer, 1.0% linearity, life expectancy 50 million revolutions.
[Power requirement]   Potentiometer excitation-15 VDC maximum.

Manufacturer R.M.Young

Model 03002LM Wind Sentry Wind Set.

The Model 03002 Wind Sentry Anemometer and Vane are Professional quality sensors. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]

Wind speed : 0 - 50 m/s (180 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)
[Accuracy]   Wind speed : +-0.5 m/s    -    Wind direction : +- 5  deg
[Threshold]   Cup anemometer : 1.1m/s   -   Vane 1.3 m/s
[Dynamic Response]

Cup wheel distance constant 2.3m

Vane delay distance 0.5m

Damping ratio : 0.2

[Signal Output]   4-20mA Output.
[Power requirement]   8-30 VDC (40 mA max.)

Manufacturer R.M.Young

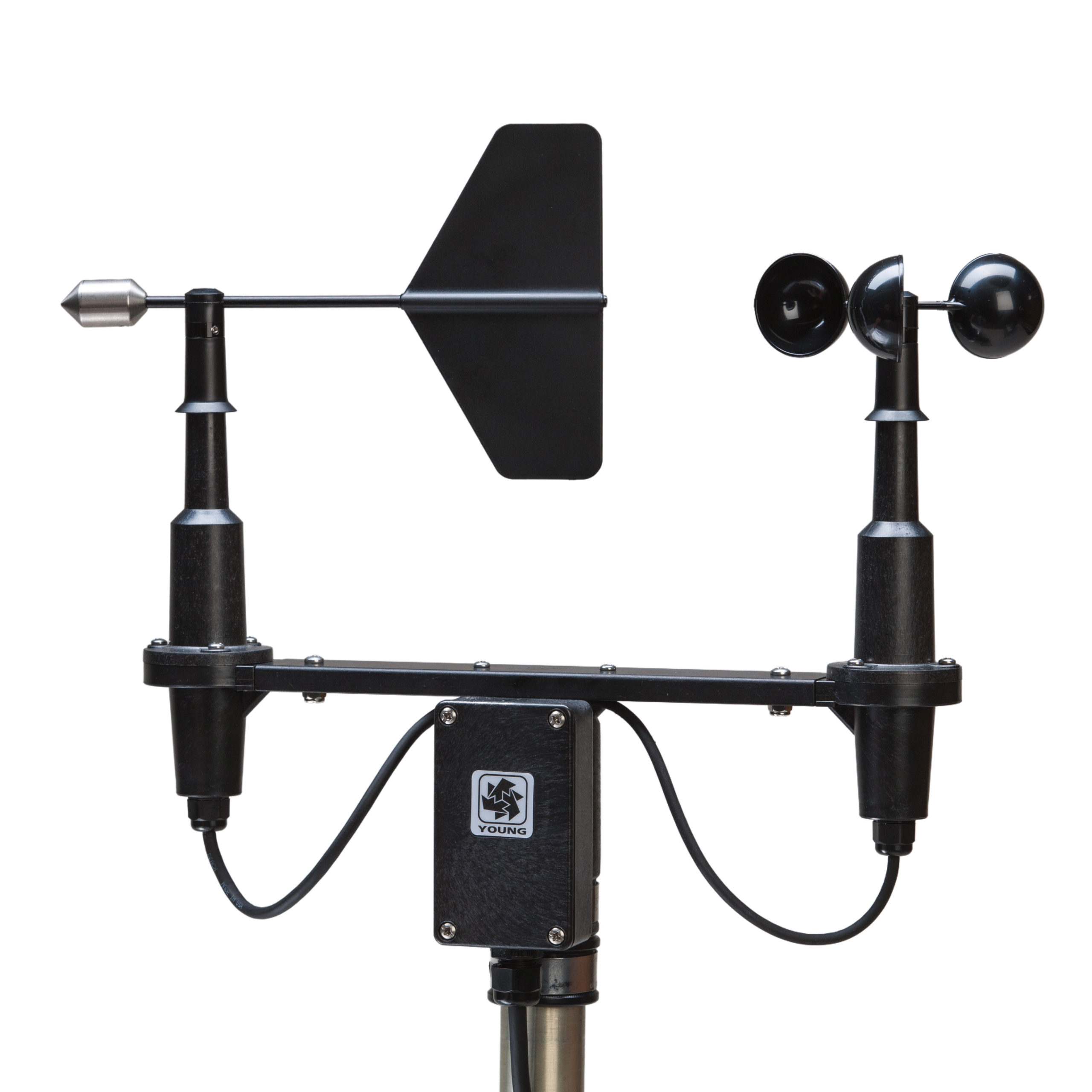

Model 03002VM Wind Sentry Wind Set.

The Model 03002 Wind Sentry Anemometer and Vane are Professional quality sensors. Suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

Download PDF
Brochure


[Range]

Wind speed : 0 - 50 m/s (180 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)
[Accuracy]   Wind speed : +-0.5 m/s    -    Wind direction : +- 5  deg
[Threshold]   Cup anemometer : 1.1m/s   -   Vane 1.3 m/s
[Dynamic Response]

Cup wheel distance constant 2.3m

Vane delay distance 0.5m

Damping ratio : 0.2

[Signal Output]   0-1V Output.
[Power requirement]   8-24 VDC (5 mA @ 12 VDC)

Manufacturer R.M.Young

Model 04101 Wind Monitor JR.

The Wind Monitor-JR is a compact, high-performance wind speed and wind direction sensor for utility, buoy, and shipboard applications.  Designed specifically for applications where compact size is of paramount importance, the Wind Monitor-JR offers the same rugged construction as our standard Wind Monitor (05103)  in a package that is 40% smaller.  The four blade propeller is integrated with the shaft, offering a simplified assembly.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)
[Accuracy ]   Wind speed : +-0.5 m/s  < 10m/s 5 % of reading > 10m/s  -    Wind direction : +- 5 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.7 m/s @ 10% displacement
[Dynamic Response]

Propeller distance constant  2m

Vane delay distance 0.8m

Damping ratio : 0.3

[Signal Output]

Wind speed : magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90Hz) = 8.8 m/s

Azimuth : analog DC voltage from conductive plastic potentiometer- 10 K Ohm resistance, linearity 1%.
[Power requirement]   Potentiometer excitation: 15 VDC maximum
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

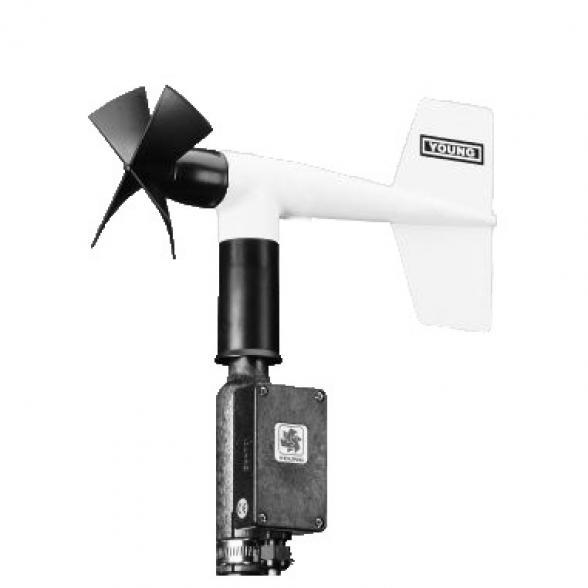

Model 04101L Wind Monitor JR.

The Wind Monitor-JR is a compact, high-performance wind speed and wind direction sensor for utility, buoy, and shipboard applications.  Designed specifically for applications where compact size is of paramount importance, the Wind Monitor-JR offers the same rugged construction as our standard Wind Monitor (05103)  in a package that is 40% smaller.  The four blade propeller is integrated with the shaft, offering a simplified assembly.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)
[Accuracy ]   Wind speed : +-0.5 m/s  < 10m/s 5 % of reading > 10m/s  -    Wind direction : +- 5 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.7 m/s @ 10% displacement
[Dynamic Response]

Propeller distance constant  2m

Vane delay distance 0.8m

Damping ratio : 0.3

[Signal Output]

4-20mA Output.
[Power requirement]   8-30 VDC (40 mA max.)
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

Model 04101V Wind Monitor JR.

The Wind Monitor-JR is a compact, high-performance wind speed and wind direction sensor for utility, buoy, and shipboard applications.  Designed specifically for applications where compact size is of paramount importance, the Wind Monitor-JR offers the same rugged construction as our standard Wind Monitor (05103)  in a package that is 40% smaller.  The four blade propeller is integrated with the shaft, offering a simplified assembly.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 352 deg electrical (8 deg open)
[Accuracy ]   Wind speed : +-0.5 m/s  < 10m/s 5 % of reading > 10m/s  -    Wind direction : +- 5 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.7 m/s @ 10% displacement
[Dynamic Response]

Propeller distance constant  2m

Vane delay distance 0.8m

Damping ratio : 0.3

[Signal Output]

0-1V Output.
[Power requirement]   8-24 VDC (5 mA @ 12 VDC)
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

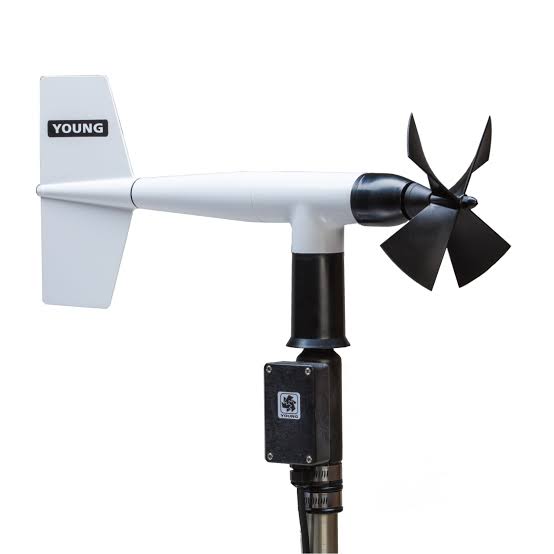

Model 05103 Wind Monitor.

The model 05103 Wind Monitor is a high performance, rugged wind sensor. The instrument is made of  UV stabilized plastics and anodized stainless steel and  aluminum fittings. Precision grade ball bearings are used. The wind sensor is a four blade helicoid propeller. The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy ]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.1 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.3   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

Wind speed : magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90Hz) = 8.8 m/s

Azimuth : analog DC voltage from conductive plastic potentiometer- resistance 0 K Ohm, linearity 0.25%.
[Power requirement]   Potentiometer excitation: 15 VDC maximum
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

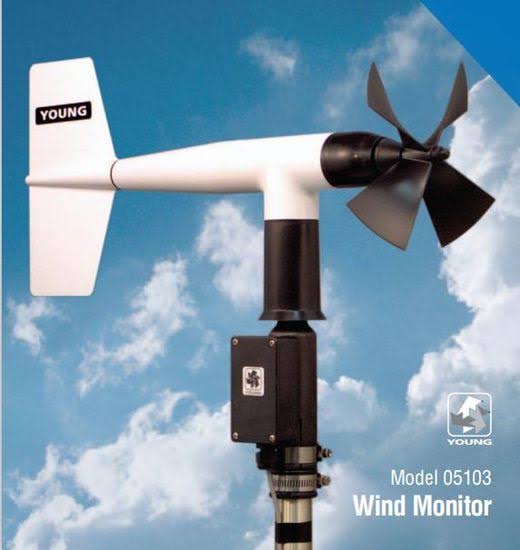

Model 05103LM Wind Monitor.

The model 05103 Wind Monitor is a high performance, rugged wind sensor. The instrument is made of  UV stabilized plastics and anodized stainless steel and  aluminum fittings. Precision grade ball bearings are used. The wind sensor is a four blade helicoid propeller. The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.1 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.3   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

4-20mA Output.
[Power requirement]   8-30 VDC (40 mA max.)
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

Model 05103VM Wind Monitor.

The model 05103 Wind Monitor is a high performance, rugged wind sensor. The instrument is made of  UV stabilized plastics and anodized stainless steel and  aluminum fittings. Precision grade ball bearings are used. The wind sensor is a four blade helicoid propeller. The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions.

Download PDF
Brochure


[Range]

Wind speed : 0 - 60 m/s (216 kph)   -  Gust survival : 100 m/s (360 kph)

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.1 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.3   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

0-1V Output.
[Power requirement]   8-24 VDC (5 mA @ 12 VDC)
[Gust Survival] 100 m/s (360 kph)

Manufacturer R.M.Young

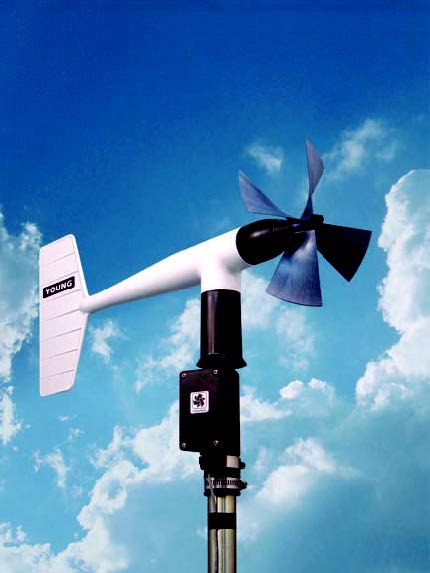

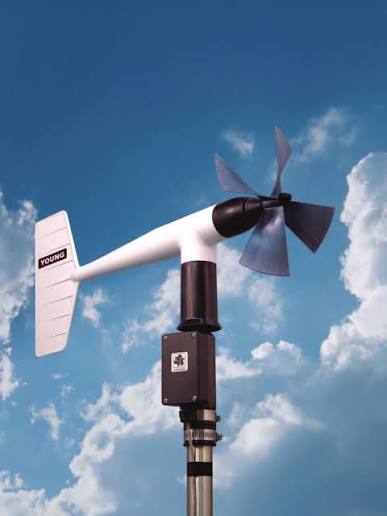

Model 05305 Wind Monitor.

The Wind Monitor-AQ is a high resolution wind sensor designed specifically for air quality applications. It combines simplicity and corrosion-resistant construction with low threshhold, fast response and excellent fidelity. The wind direction sensor is a lightweight, reinforced polystyrene, vane with performance characteristics that assure excellent fidelity in fluctuating wind conditions.  The instrument body is UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used throughout. Wind speed is sensed by a lightweight, carbon fiber thermoplastic (CFT), helicoid propeller. The Wind Monitor-AQ meets the requirements of the following regulatory agencies: U.S. Environmental Protection Agency- Ambient Monitoring Guidelines for Prevention of Significant Deterioration (PSD). U.S. Nuclear Regulatory Agency- NRC Regulatory Guide 1.23 Meteorological Programs in Support of Nuclear Power Plants. American Nuclear Society- Standard for Determining Meteorological Information at Power Plants.

Download PDF
Brochure


[Range]

Wind speed: 0-40 m/s (144kph) Gust survival: 45 m/s (162 kph)

Azimuth: 360° mechanical, 355° electrical (5° open)
[Accuracy]

Wind speed: ±0.2 m/s

Wind direction: ±3 degrees

[Threshold]

Propeller: 0.4 m/s (0.9 mph).

Vane: 0.5 m/s (1.0 mph) at 10° displacement.

[Dynamic Response]

Propeller distance constant (63% recovery) - 2.1 m

Vane delay distance (50% recovery)- 1.2 m (3.9 ft)

Damping ratio: 0.45 Damped natural wavelength: 4.9 m. Undamped natural wavelength: 4.4 m.

[Signal Output]

Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) 8.8 m/s (19.7 mph)

Azimuth: analog DC voltage from conductive plastic potentiometer- resistance 10K ohm, linearity 0.25%, life expectancy- 50 million revolutions.
[Power requirement]   Potentiometer excitation 15 VDC maximum.
[Gust Survival] Gust survival: 45 m/s (162 kph).

Manufacturer R.M.Young

Model 05305LM Wind Monitor.

The Wind Monitor-AQ is a high resolution wind sensor designed specifically for air quality applications. It combines simplicity and corrosion-resistant construction with low threshhold, fast response and excellent fidelity. The wind direction sensor is a lightweight, reinforced polystyrene, vane with performance characteristics that assure excellent fidelity in fluctuating wind conditions.  The instrument body is UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used throughout. Wind speed is sensed by a lightweight, carbon fiber thermoplastic (CFT), helicoid propeller. The Wind Monitor-AQ meets the requirements of the following regulatory agencies: U.S. Environmental Protection Agency- Ambient Monitoring Guidelines for Prevention of Significant Deterioration (PSD). U.S. Nuclear Regulatory Agency- NRC Regulatory Guide 1.23 Meteorological Programs in Support of Nuclear Power Plants. American Nuclear Society- Standard for Determining Meteorological Information at Power Plants.

Download PDF
Brochure


[Range]

Wind speed: 0-40 m/s (144kph) Gust survival: 45 m/s (162 kph)

Azimuth: 360° mechanical, 355° electrical (5° open)
[Accuracy]

Wind speed: ±0.2 m/s

Wind direction: ±3 degrees

[Threshold]

Propeller: 0.4 m/s (0.9 mph).

Vane: 0.5 m/s (1.0 mph) at 10° displacement.

[Dynamic Response]

Propeller distance constant (63% recovery) - 2.1 m

Vane delay distance (50% recovery)- 1.2 m (3.9 ft)

Damping ratio: 0.45 Damped natural wavelength: 4.9 m. Undamped natural wavelength: 4.4 m.

[Signal Output]   4-20 mA full scale
[Power requirement]   12-30 VDC (load dependent)
[Gust Survival] Gust survival: 45 m/s (162 kph).

Manufacturer R.M.Young

Model 05305VM Wind Monitor.

The Wind Monitor-AQ is a high resolution wind sensor designed specifically for air quality applications. It combines simplicity and corrosion-resistant construction with low threshhold, fast response and excellent fidelity. The wind direction sensor is a lightweight, reinforced polystyrene, vane with performance characteristics that assure excellent fidelity in fluctuating wind conditions.  The instrument body is UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used throughout. Wind speed is sensed by a lightweight, carbon fiber thermoplastic (CFT), helicoid propeller. The Wind Monitor-AQ meets the requirements of the following regulatory agencies: U.S. Environmental Protection Agency- Ambient Monitoring Guidelines for Prevention of Significant Deterioration (PSD). U.S. Nuclear Regulatory Agency- NRC Regulatory Guide 1.23 Meteorological Programs in Support of Nuclear Power Plants. American Nuclear Society- Standard for Determining Meteorological Information at Power Plants.

Download PDF
Brochure


[Range]

Wind speed: 0-40 m/s (144kph) Gust survival: 45 m/s (162 kph)

Azimuth: 360° mechanical, 355° electrical (5° open)
[Accuracy]

Wind speed: ±0.2 m/s

Wind direction: ±3 degrees

[Threshold]

Propeller: 0.4 m/s (0.9 mph).

Vane: 0.5 m/s (1.0 mph) at 10° displacement.

[Dynamic Response]

Propeller distance constant (63% recovery) - 2.1 m

Vane delay distance (50% recovery)- 1.2 m (3.9 ft)

Damping ratio: 0.45 Damped natural wavelength: 4.9 m. Undamped natural wavelength: 4.4 m.

[Signal Output]   0-1.00 VDC full scale
[Power requirement]   8-24 VDC (3 mA @ l2 VDC)
[Gust Survival] Gust survival: 45 m/s (162 kph).

Manufacturer R.M.Young

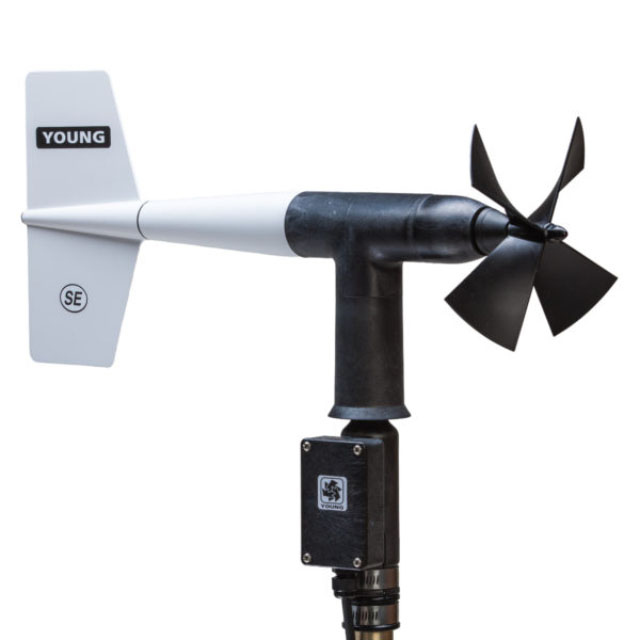

Model 09101 Wind Monitor.

The Wind Monitor-SE combines the performance and durability of our standard Wind Monitor with a unique optical encoder wind direction transducer and serial output signal.

Download PDF
Brochure


[Range]

Wind speed: 0-60 m/s (216 mph)

Gust survival: 100 rn/s (360 kph)

Wind direction: 0-360 degrees
[Resolution]

Wind speed: 0.1 unit (m/s, kts, mph, km/h)

Wind direction: 1 degree

[Accuracy]

Wind speed: ±0.3 rn/s

Wind direction: ±2 degrees

[Threshold]

Propeller: 1.0 m/s

Vane: 1.1 m/s@ 10° displacement

[Dynamic Response]

Damping ratio: 0.3

Damped natural wavelength: 7.4 m

Undamped natural wavelength: 7.2 m

[Signal Output]

Voltage Output: WS: 0-5 VDC for 0-100 m/s WD: 0-5 VDC for 0-540°

Serial RS-485: RMY, NCAR, or NMEA protocols Polled or continuous output
[Power requirement]

11-24 VDC, 20 mA

[Gust Survival] Gust survival: 100 rn/s (360 kph)

Manufacturer R.M.Young

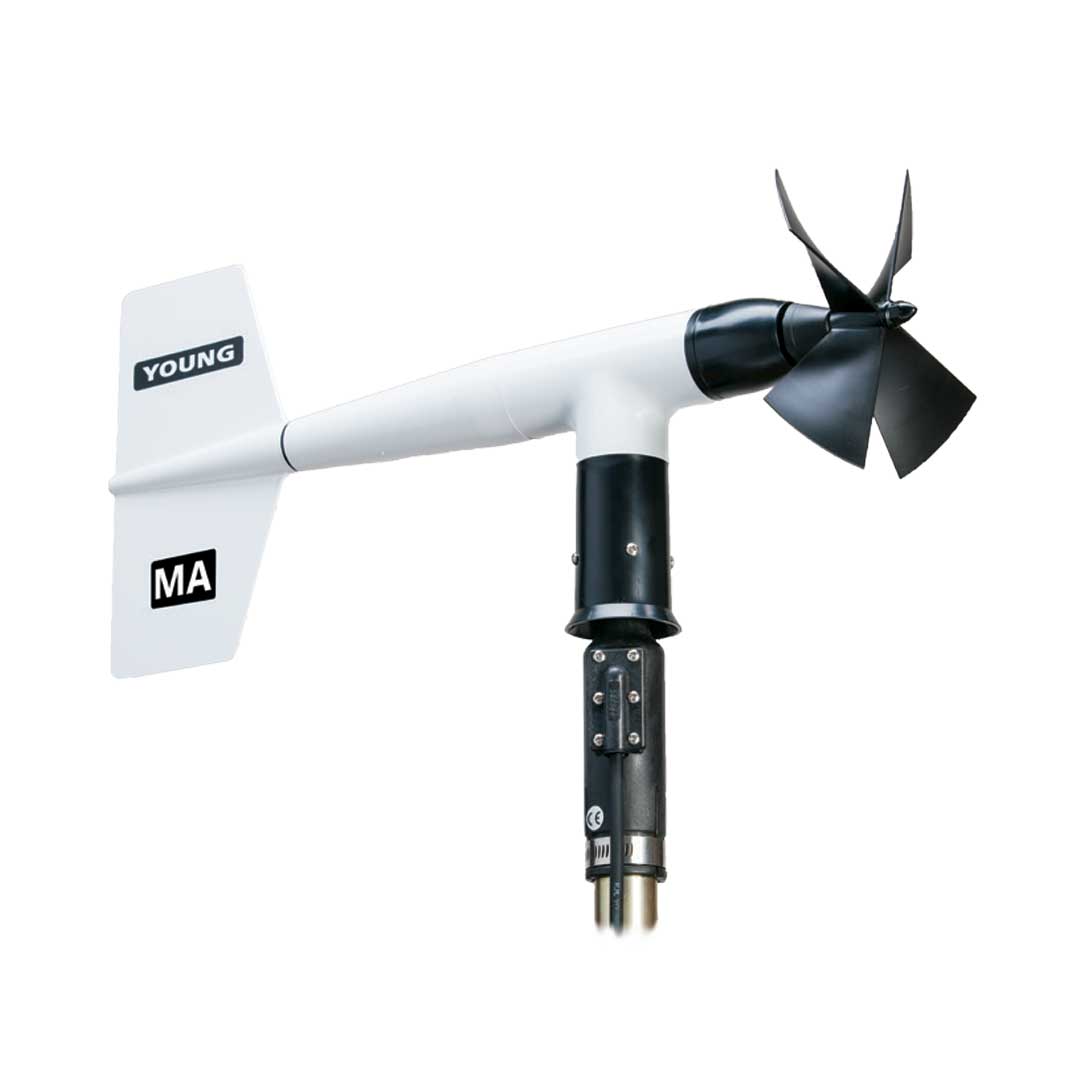

Model 05106 Wind Monitor MA.

Model 05106 Wind Monitor MA is specifically designed for a Marine environment The wind speed sensor is a four blade helicoid propeller. Unique transducer produces a pulse signal without electrical contacts or slip rings. The wind direction sensor is a durable molded vane. Vane angle is sensed by a precision potentiometer housed in a sealed chamber. With a known voltage applied to the potentiometer the output voltage is directly proportional to the vane angle. All materials are carefully selected for corrosion resistance and maximum durability in the harsh marine environment. Stainless steel bearings are used throughout. Special waterproof lubricant further enhances reliability. The instrument mounts on standard 1 inch pipe.

Download PDF
Brochure


[Range]

Wind speed : 0 - 100 m/s (224 mph)   -

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.0 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.25   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

Wind Speed Magnetically Induced AC Voltage, 3 pulses per revolution, 1800 rpm (90Hz) = 8.8 m/s Wind Direction: Analog DC Voltage from conductive plastic potentiometer resistance 10K Ohm, 0.25% Linearity, life expectancy 50 million revolutions.


Manufacturer R.M.Young

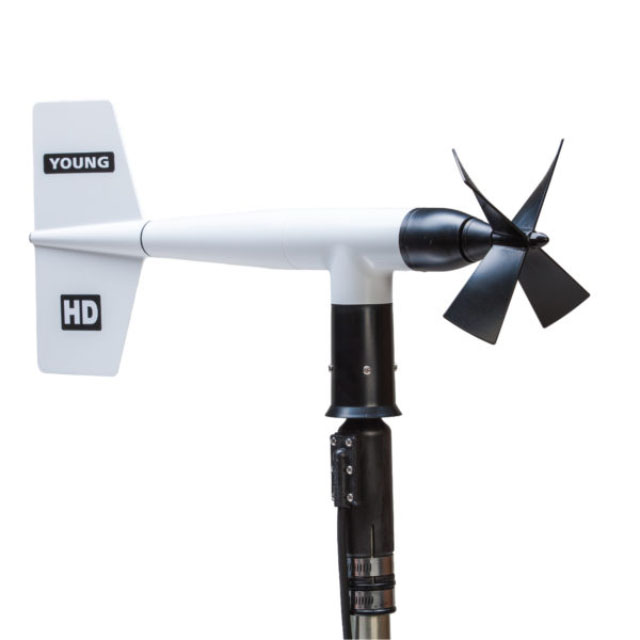

Model 05108 Wind Monitor HD.

Model 05108 Wind Monitor HD is a Heavy Duty Unit with ceramic bearings The HD utilizes extremely long-wearing, oversize ceramic bearings to increase service life many times longer than standard stainless steel bearings. In addition to being more wear resistant, ceramic is resistant to corrosion in environments that are hostile to steel bearings. The Wind Monitor-HD also has oversized propeller shaft, high pitch propeller and locking propeller nut, all features that will further enhance long-term reliability of the sensor.

Download PDF
Brochure


[Range]

Wind speed : 0 - 100 m/s (224 mph)   -

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.0 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.25   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

Wind Speed Magnetically Induced AC Voltage, 3 pulses per revolution, 1 rev=50cm air passage Wind Direction: Analog DC Voltage from conductive plastic potentiometer resistance 10K Ohm, 0.25% Linearity, life expectancy 50 million revolutions.


Manufacturer R.M.Young

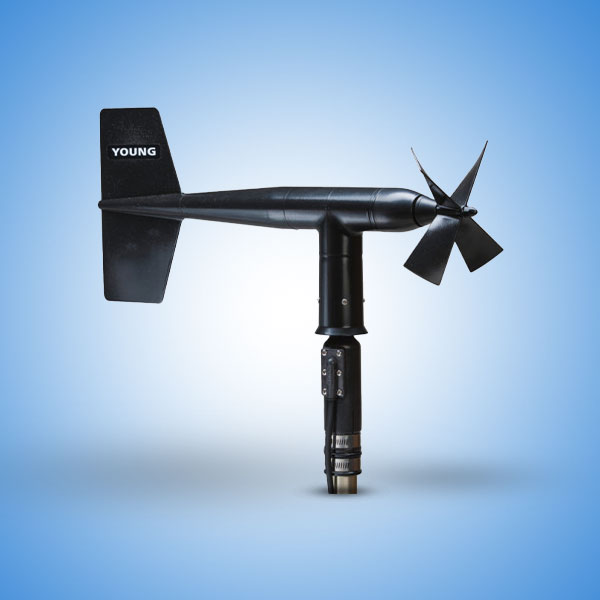

Model 05108-45 Wind Monitor HD-Alpine.

Model 05108-45 Wind Monitor HD-Alpine is a Heavy Duty Unit with ice-resistant coating The HD-Alpine utilizes extremely long-wearing, oversize ceramic bearings to increase service life many times longer than standard stainless steel bearings. In addition to being more wear resistant, ceramic is resistant to corrosion in environments that are hostile to steel bearings. The Wind Monitor-HD-Alpine also has an oversized propeller shaft, high pitch propeller and locking propeller nut, all features that will further enhance long-term reliability of the sensor. All external housing surfaces are coated with a specially formulated, ice-resistant coating to improve performance in harsh Alpine conditions. The all-black color scheme further enhances the ice shedding performance of the sensor.

Download PDF
Brochure


[Range]

Wind speed : 0 - 100 m/s (225mph)   -

Azimuth : 360 deg  mechanical, 355 deg electrical (5 deg open)
[Accuracy]   Wind speed : +-0.3 m/s    -    Wind direction : +- 3 deg
[Threshold]   Propeller : 1m/s   -   Vane 1.0 m/s
[Dynamic Response]

Propeller distance constant (63% recovery) 2.7m

Vane delay distance (50% recovery) 1.3m

Damping ratio : 0.25   -  damped natural wavelength : 7.4m   -  undamped natural wavelength : 7.2m

[Signal Output]

Wind Speed Magnetically Induced AC Voltage, 3 pulses per revolution, 1 rev=50cm air passage Wind Direction: Analog DC Voltage from conductive plastic potentiometer resistance 10K Ohm, 0.25% Linearity, life expectancy 50 million revolutions.


Manufacturer R.M.Young

Model 12005 MicroVane and 3 Cup Anemometer

The Gill MicroVane and 3-Cup Anemometer measure horizontal wind direction and wind speed. Sensitive enough for detailed wind studies, these sensors are rugged enough for permanent installation with only periodic maintenance. Vane angle is sensed by a precision conductive plastic potentiometer. For greater durability, the 12005 and 12305 Models have a thin aluminum fin. Aluminum fin models are somewhat less sensitive than the EPS fin models. The 3-Cup Anemometer is constructed with  lightweight, UV resistant plastic cups. Standard models utilize a sensitive DC tach-generator to measure wind speed.wave. Models 12002 and 12005 combine a MicroVane and 3-Cup Anemometer with a 76cm mounting crossarm to minimize potential wake effects.

Download PDF
Brochure


[Range]

Wind speed : 0 - 50 m/s (180 kph) Gust Survival: 60 m/s (216kph)

Azimuth: 360° mechanical, 355° electrical (5° open)
[Accuracy]   n/a
[Threshold]

Anemometer with tach-generator- 0.5 m/s (1.1 mph)

Anemometer with photochopper- 0.3 m/s (0.7 mph)

Vane at 10° displacement- 0.4 m/s (0.9 mph)

Vane at 5° displacement- 0.7 m/s (1.6 mph)

Wind Speed Signal: Standard tach-generator transducer

[Dynamic Response]

Vane Delay Distance*: 1.1 m

Damping Ratio*: 0.34 Damped Natural Wavelength*: 6.1 m Undamped Natural Wavelength*: 5.7 m

[Signal Output]

Wind Speed : Standard tach-generator transducer provides analog DC voltage linearly proportional to wind speed. 1800 RPM (2400 mV) = 28.6 m/s (64.0 mph). Optional photochopper transducer provides DC pulse with frequency linearly proportional to wind speed. 10 pulses per revolution. 1800 RPM (300 Hz) = 28.6 m/s (64.0 mph). Wind Direction Signal: Analog DC voltage from 10K ohm plastic potentiometer, 0.25% linearity, life expectancy: 50 million revolutions. Excitation 15 VDC max.

Wind Direction : Analog DC voltage from 10K ohm plastic potentiometer, 0.25% linearity, life expectancy: 50 million revolutions.
[Power requirement]

 Excitation 15 VDC max.

[Gust Survival] Gust Survival: 60 m/s (216kph)

Manufacturer R.M.Young

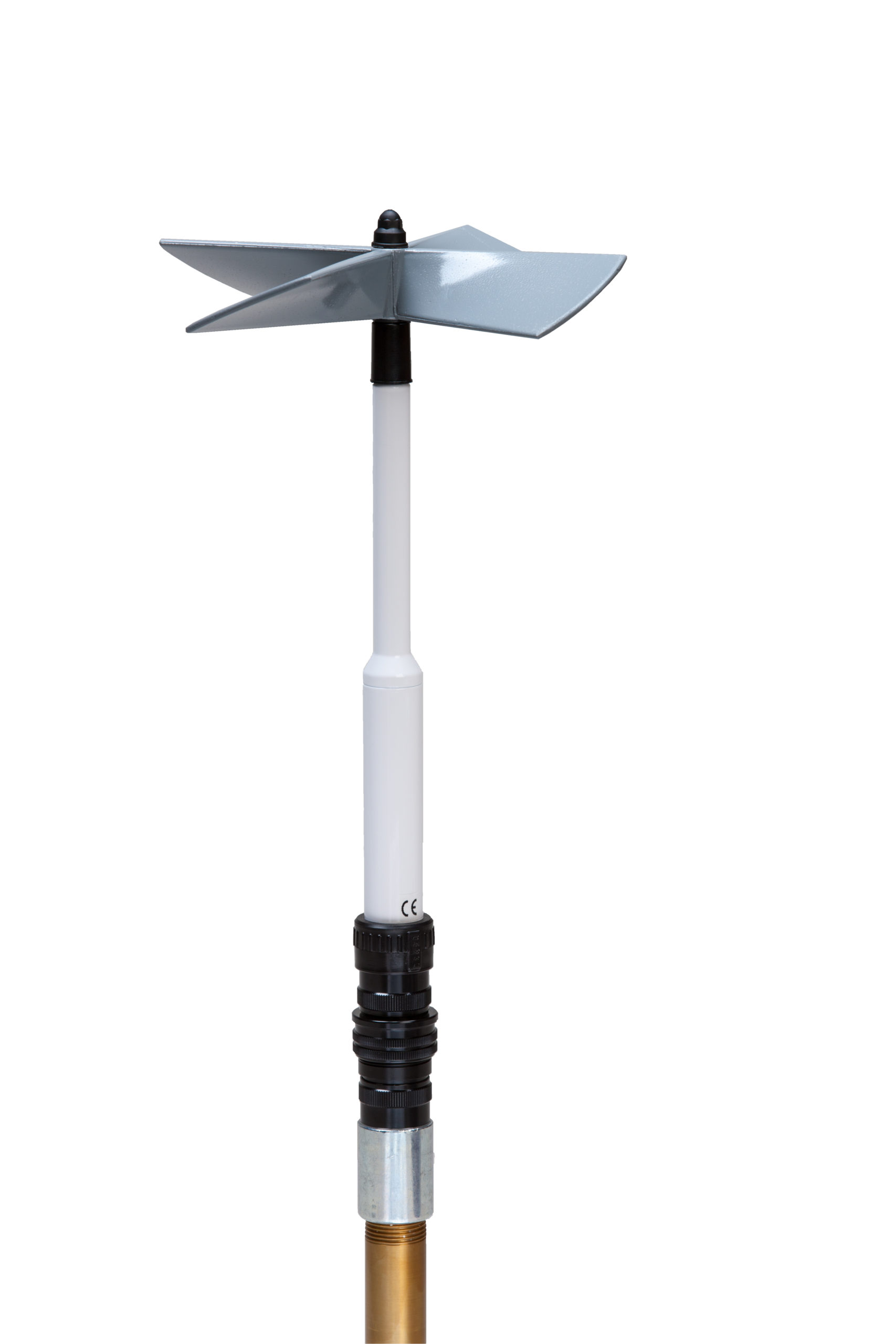

Model 27106 Propeller Anemometer with 08274 EPS Propeller

The Gill Propeller Anemometer is a  low threshold precision air velocity sensor employing a fast response helicoid propellar. Air flow from any direction may be measured, however, the propeller responds only to the component of the air flow which is parallel to the axis of its rotation.

Download PDF
Brochure


[Range]   0-35 m/s (126 kph)
[Accuracy]    n/a
[Threshold]   0.4 m/s
[Dynamic Response]   Distance constant*: 2.1 m
[Signal Output]   Standard tach-generator transducer - analog DC voltage proportional to wind component. Polarity indicates rotation direction. 1800 RPM (500 mV) = 8.8 m/s (19.7 mph).
[Power requirement]   Propeller Anemometer with tachgenerator is self-powered.
[Gust Survival n/a

Manufacturer R.M.Young

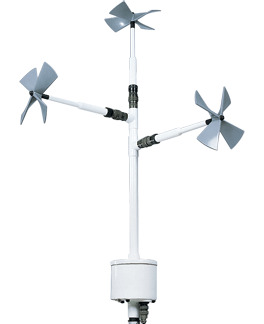

Model 27005T UVW Anemometer

The Gill UVW Anemometer measures the three orthogonal vectors of the wind: along wind component "U", across wind component "V", and vertical wind component "W". The three Propeller Anemometer sensors are mounted at right angles on a common mast. Each sensor measures the wind component parallel with its axis of rotation. Propeller response as a function of wind angle approximates the cosine law, allowing true wind velocity and direction to be calculated.  The UVW Anemometer is designed for maximum sensitivity at lower wind speeds. Optional carbon fiber thermoplastic (CFT) propellers are available for applications requiring greater range and durability. Rain and dust are excluded from the precision bearings by a continuous duty air blower that keeps the instrument under a slight positive pressure.  The Propeller Anemometer is a precision air speed measuring instrument. The four blade helicoid propeller drives a miniature tach-generator. Output voltage is directly proportional to the axial component of the wind speed. Signal polarity indicates direction of propeller rotation. The Propeller Anemometer is also available with single or dual direction photochopper transducer. The Propeller Anemometer is especially suited for measuring the vertical wind componenet. Since normal wind direction seldom exceeds ±30º from horizontal, propeller response can be calibrated to follow the cosine law within 3% over this range.

Download PDF
Brochure


[Range]

0-35 m/s (126 kph)
[Accuracy]    n/a
[Threshold]   0.4 m/s
[Dynamic Response]   Distance constant*: 2.1 m
[Signal Output]

Standard tach-generator transducer - analog DC voltage proportional to wind component. Polarity indicates rotation direction. 1800 RPM (500 mV) = 8.8 m/s (19.7 mph).

Optional photochopper transducer - Voltage pulse with frequency proportional to wind component. 10 pulses per revolution. 1800 RPM (300 Hz) = 8.8 m/s (19.7 mph)

[Power requirement]

24 VAC/12 W for blower motor in UVW Anemometer (separate 115/230V transformer supplied). Propeller Anemometer with tachgenerator is self-powered. Optional photochopper transducer requires 5-15 VDC at 11 mA.
[Gust Survival]   n/a

Manufacturer R.M.Young

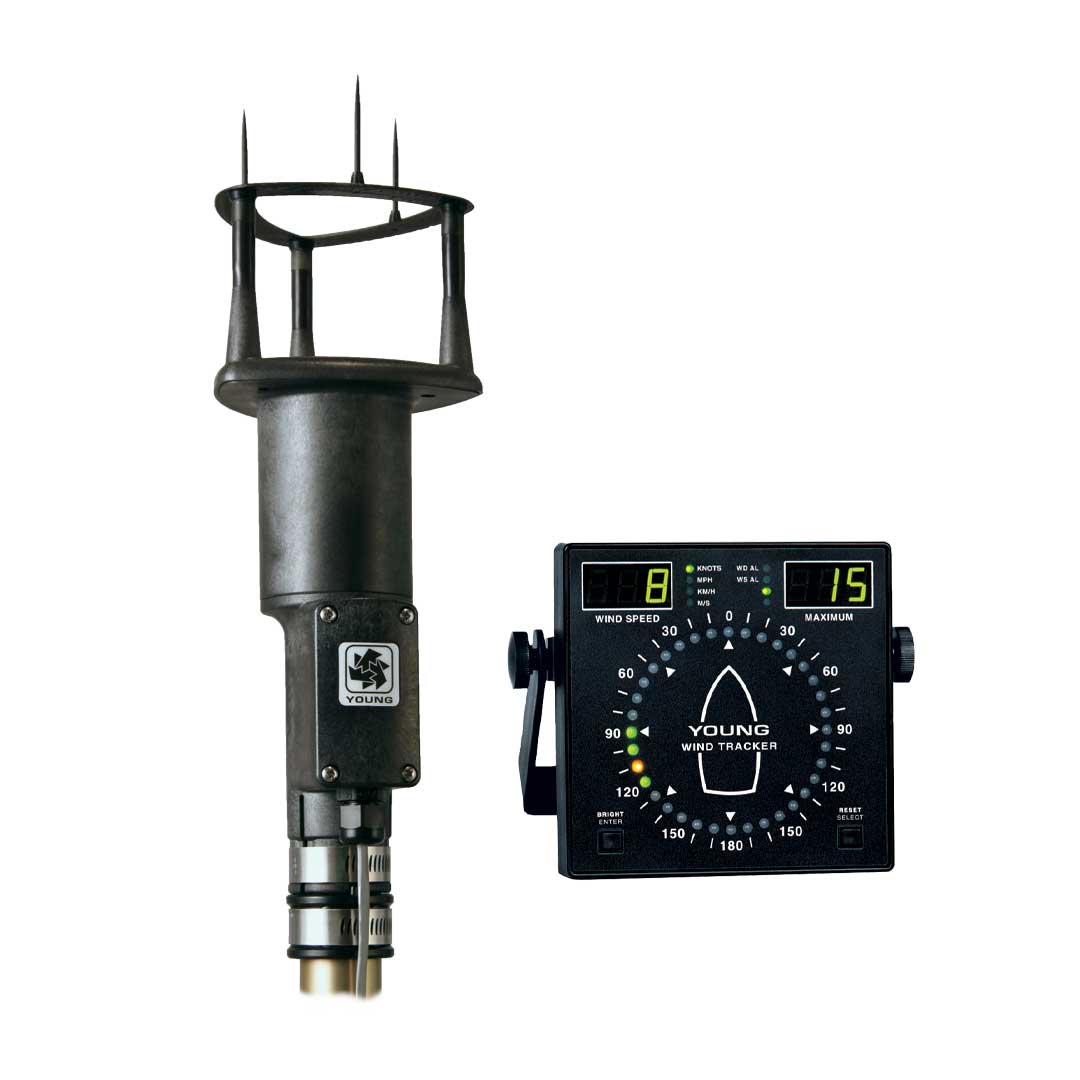

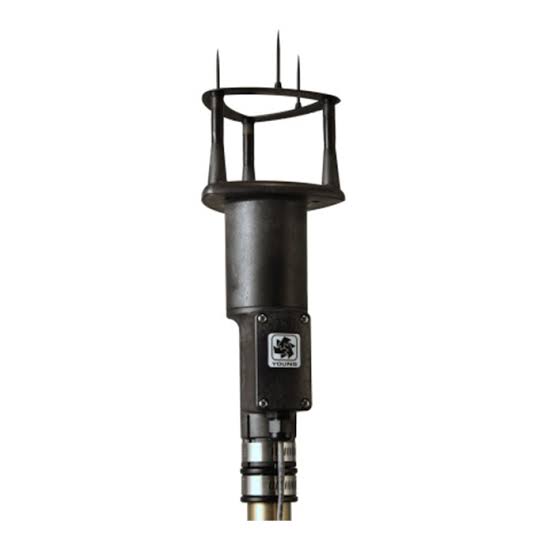

Model 86000 Ultrasonic Wind Sensor

The YOUNG Model 86000 Ultrasonic Anemometer is a 2-dimensional, no-moving-parts wind sensor. sensor. It is ideal for general meteorological applications requiring accurate, reliable wind measurement.

Download PDF
Brochure


[Range]

Wind Speed: 0 to 60 m/s (0 to 134 mph)

Wind Direction: 0 to 360 degrees
[Resolution]

Wind Speed: 0.1 m/s

Wind Direction:1 degree
[Accuracy]   Wind Speed:± 3% ±0.1 m/s

Wind Direction:± 3 degrees
[Threshold]   n/a
[Signal Output]   Analog voltage outputs. Wind Speed : 0 to 5000 mV(0-60m/s),  Wind Direction : 0 to 5000 mV(0-540Deg).

Serial output RS-232 or RS-485 1 Hz  ASCII output configuration ASCII Text RMYT NMEA SDI-12 Units: m/s, MPH, Knots, Km/hr.
[Power requirement]

9 to 16 VDC , 40 mA


Manufacturer R.M.Young

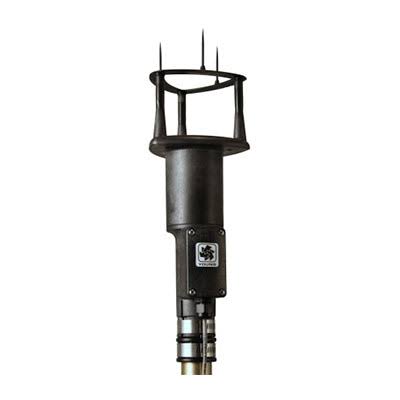

Model 86106 Ultrasonic Wind Sensor

The YOUNG Model 86106 Marine Ultrasonic Anemometer is a 2-dimensional, no-moving-parts wind sensor with special features for use in a Marine environment. It is ideal for applications requiring accurate, reliable wind measurement.

Download PDF
Brochure


[Range]

Wind Speed: 0 to 70 m/s (0 to 156 mph)

Wind Direction: 0 to 360 degrees
[Resolution]

Wind Speed: 0.1 m/s

Wind Direction:1 degree
[Accuracy]   Wind Speed:± 3% or ±0.1 m/s

Wind Direction:± 2 degrees
[Threshold]   n/a
[Signal Output]   Analog voltage outputs. Wind Speed : 0 to 5000 mV(0-100m/s),  Wind Direction : 0 to 5000 mV(0-540Deg).

Serial output RS-232 or RS-485 1 Hz  ASCII output configuration ASCII Text RMYT NMEA SDI-12 Units: m/s, MPH, Knots, Km/hr.
[Power requirement]

9 to 16 VDC , 30 mA typical, <1 mA standby.


Manufacturer R.M.Young

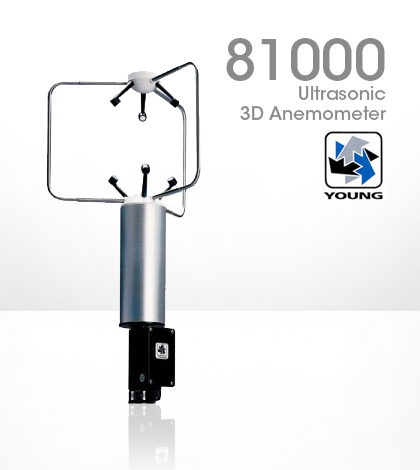

Model 81000 Ultrasonic Wind Sensor

The YOUNG Model 81000 Ultrasonic Anemometer is a 3-dimensional, no-moving-parts wind sensor. 2-D anemometers meet the need for economy, however, they ignore the important vertical wind component. The YOUNG Model 81000 offers an economical solution that provides a complete picture of the wind.

Download PDF
Brochure


[Range]

Wind Speed: 0 to 40 m/s (0 to 90 mph)

Wind Direction: 0 to 360 degrees Elevation Range: ± 60 degrees

Speed of Sound : 300 to 360 m/s

Sonic Temperature : -50 to +50 ºC
[Resolution]

Wind Speed: 0.01 m/s

Wind Direction:0.1 degree

Speed of Sound : 0.01 m/s

Sonic Temperature : 0.01 ºC

[Accuracy]   Wind Speed:± 1% rms ±0.05 m/s (0 to 30 m/s ± 3% rms (30 to 40 m/s)

Wind Direction:± 2 degrees (1 to 30 m/s) ± 5 degrees (30 to 40 m/s)

Speed of Sound : Accuracy: ± 0.1% rms ±0.05 m/s (0 to 30 m/s)

Sonic Temperature : Accuracy: ± 2 ºC (0 to 30 m/s)

[Threshold]   0.01 m/s
[Signal Output]   4 voltage outputs, 0 to 4000 mV (select from U, V, W, Sonic temperature or Speed, Azimuth, Elevation, Sonic temperature)

Serial output RS-232 or RS-485 1200 to 38400 baud  4 to 32 Hz (user-selected) User Programmable ASCII output configuration  (select from U, V, W, Speed of sound, Sonic temperature, 2D speed, 3D speed, Azimuth, Elevation) Preset outputs: NMEA- Marine  Standard RMYT- Young Wind Tracker Units:m/s, cm/s, MPH, Knots, Km/hr.
[Power requirement]

12 to 30 VDC , 4 watts


Manufacturer R.M.Young

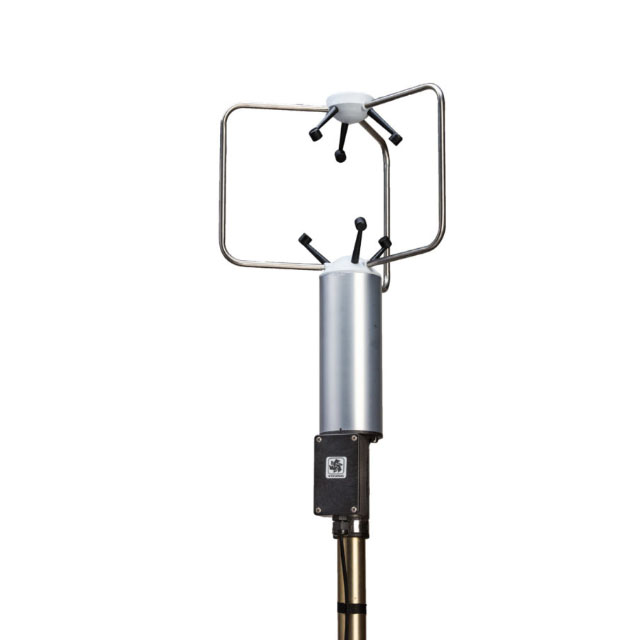

Model 81000V Ultrasonic Wind Sensor

The YOUNG Model 81000V Ultrasonic Anemometer is a 3-dimensional, no-moving-parts wind sensor. 2-D anemometers meet the need for economy, however, they ignore the important vertical wind component. The YOUNG Model 81000V offers an economical solution that provides a complete picture of the wind. For applications requiring synchronized analog measurements, Model 81000V includes 4 voltage input channels instead of voltage outputs.

Download PDF
Brochure


[Range]

Wind Speed: 0 to 40 m/s (0 to 90 mph)

Wind Direction: 0 to 360 degrees Elevation Range: ± 60 degrees

Speed of Sound : 300 to 360 m/s

Sonic Temperature : -50 to +50 ºC
[Resolution]

Wind Speed: 0.01 m/s

Wind Direction:0.1 degree

Speed of Sound : 0.01 m/s

Sonic Temperature : 0.01 ºC

[Accuracy]   Wind Speed:± 1% rms ±0.05 m/s (0 to 30 m/s ± 3% rms (30 to 40 m/s)

Wind Direction:± 2 degrees (1 to 30 m/s) ± 5 degrees (30 to 40 m/s)

Speed of Sound : Accuracy: ± 0.1% rms ±0.05 m/s (0 to 30 m/s)

Sonic Temperature : Accuracy: ± 2 ºC (0 to 30 m/s)

[Threshold]   0.01 m/s
[Signal Input]

Range : 0 - 5000mV, V1 & V2

0 - 1000 mV, V3, V4

Resolution: 1 part in 4000

Accuracy: +- 0.1% of full scale.
[Power requirement]   12 to 24 VDC , 110 mA

Manufacturer R.M.Young

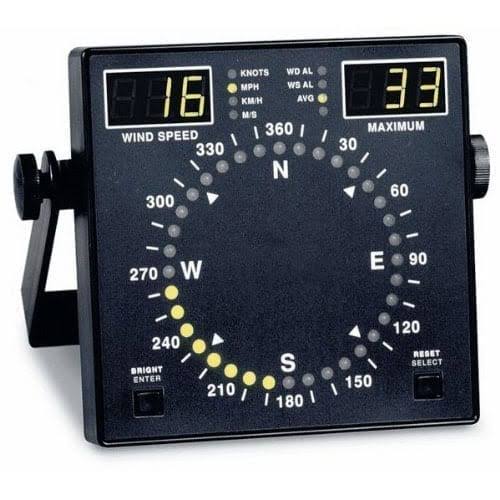

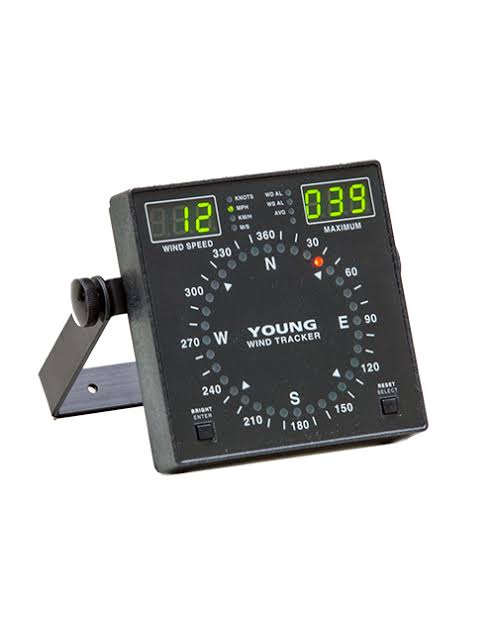

Model 06201 Wind tracker.

The new Wind Tracker wind speed and wind direction indicator offers big performance in a compact display.  Wind speed is displayed in your choice of units: KNOTS, MPH, KM/H, M/S. Maximum wind speed is saved on the display until reset by the operator. Wind direction information is clearly displayed on a circular compass pattern of LEDs. Multicolored segments give a quick visual indication of current direction and direction variability. Front panel brightness control allows adjustment for best viewing in any light.

Download PDF
Brochure


[Wind Speed Range]

0-100 MPH, 0-50 M/S, 0-200 KM/H, 0-100 KNOTS
[Wind Direction Range]

0-360 degrees, 36 points

[Display Resolution]

Wind Speed & Maximum- 1 unit (0.1 M/S only)

Wind Direction- 10 degrees (36 points circular),1 degree (digital display mode)

[Compatible Sensors]

Wind Monitor

Wind Monitor-MA

Wind Monitor-AQ

Wind Monitor-SE

Wind Monitor-JR

Wind Sentry

[Other Inputs]

RS-485

4-20 mA

[Voltage Outputs]   0-5 VDC Full Scale for WS & WD
[Alarm Relays]

Normally Open contacts for WS & WD

Contact Rating: 5A resistive,

2A inductive @ 250 VAC, 30 VDC

[Power Requirement]   12-30 VDC, 4.5 W
Manufacturer R.M.Young

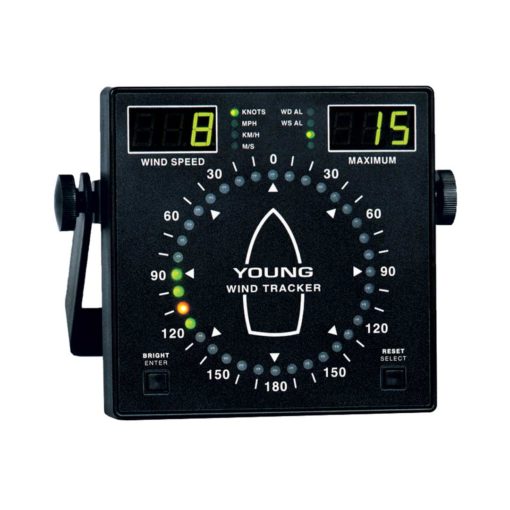

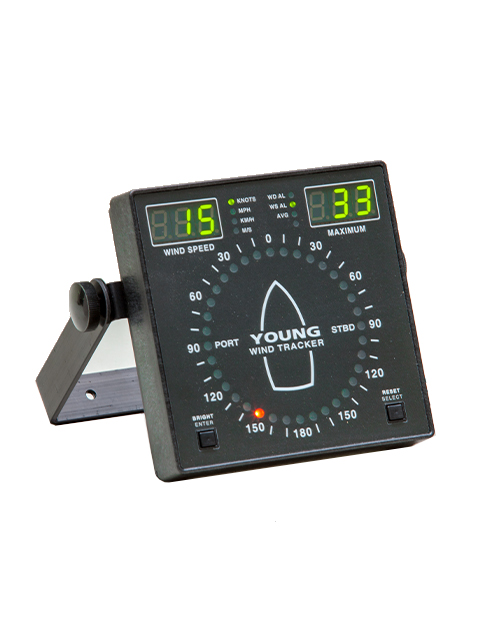

Model 06206 Marine Wind tracker.

Developed from our standard Wind Tracker, the Marine Wind Tracker has special features for shipboard use.  Wind speed is displayed in your choice of units: KNOTS, MPH, KM/H, M/S. Maximum wind speed is saved on the display until reset by the operator. Wind direction information is clearly displayed on a circular compass pattern of LEDs. Multicolored segments give a quick visual indication of current direction and direction variability. Front panel brightness control allows adjustment for best viewing in any light.

Download PDF
Brochure


[Wind Speed Range]

0-100 MPH, 0-50 M/S, 0-200 KM/H, 0-100 KNOTS
[Wind Direction Range]

0-360 degrees, 36 points

[Display Resolution]

Wind Speed & Maximum- 1 unit (0.1 M/S only)

Wind Direction- 10 degrees (36 points circular),1 degree (digital display mode)

[Recommended Sensors]

Wind Monitor

Wind Monitor-MA

Wind Monitor-SE

Wind Monitor-JR

[Other Inputs]

RS-485

4-20 mA

[Voltage Outputs]   0-5 VDC Full Scale for WS & WD
[Alarm Relays]

Normally Open contacts for WS & WD

Contact Rating: 5A resistive,

2A inductive @ 250 VAC, 30 VDC

[Power Requirement]   12-30 VDC, 4.5 W
Manufacturer R.M.Young


Copyright © 2005 Inteltronics Instrumentation.
